NEW!   Lowering Kit for Beta Cross Trainer   NEW!

NOW AVAILABLE!

After an unexpected delay, lowering kits are now available for your XTrainer.  The lowering kits come in either a 1" or a 2" lowering configuration.  The 2" kit comes with a shorter kickstand pole and it is required that you get the 2" shorter fork spring (not included) to complete the package.  This is not a linkage kit and can only be installed by a competent suspension technician as it requires disassembly of the shock and left fork leg.

1" Drop Kit - $64.99

2" Drop Kit - $168.99

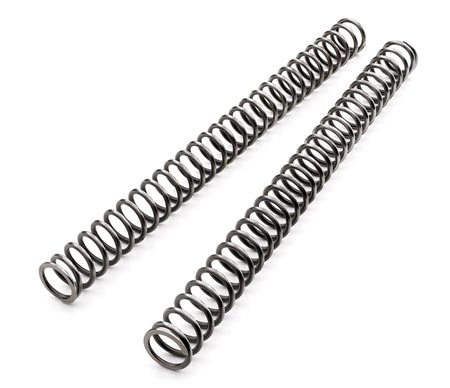

1" Drop Fork Spring - $99.99

2" Drop Fork Spring - $99.99

Rear Shock Spring - $139.99

A new rear spring is not required for either drop kit, but since you'll have the shock apart this would be a great time to tailor the spring rate to your weight.  If you're doing the optimal lowering, you're going to change the fork spring too, so might as well match the springs!  Below is a spring rate chart for the XTrainer:

Front:

.76 kg AB-12043-76

125-144 lbs.

.78 kg AB-12043-78

145-164 lbs

.80 kg AB-12043-80

165-175 lbs (stock)

.82 kg AB-12043-82

176-190 lbs

.84 kg AB-12043-84

191-210 lbs

.86 kg AB-12043-86

211-230 lbs

.88 kg AB-12043-88

231-250 lbs

.90 kg AB-12043-90

251-270 lbs

.92 kg AB-12043-92

271-280 lbs



Rear:

4.8 kg AB-10145-48

125-144 lbs.

5.0 kg AB-10145-50

145-164 lbs

5.2 kg AB-10145-52

165-175 lbs (stock)

5.4 kg AB-10145-54

176-190 lbs

5.6 kg AB-10145-56

191-210 lbs

5.8 kg AB-10145-58

211-230 lbs

6.0 kg AB-10145-60

231-250 lbs

6.2 kg AB-10145-62

251-270 lbs

6.4 kg AB-10145-64

271-280 lbs



Email/call us for details - nuts(at)konnections.net/801-773-3918
